Description

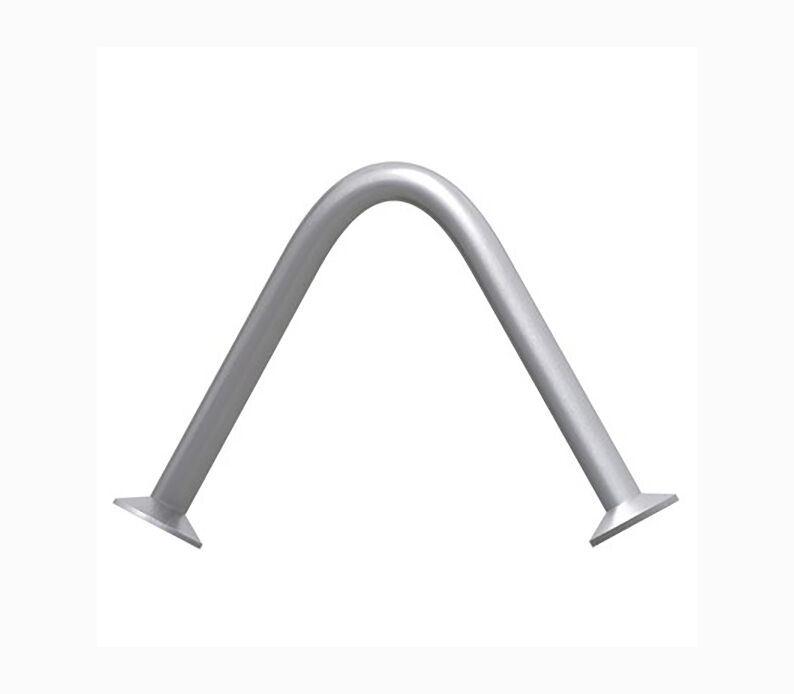

Utility Anchor
The Utility Anchor Precast Concrete Utility Anchor is an anchor designed for reinforced or unreinforced concrete units and can be used for removing precast elements from formwork, handling elements in precast yards, loading and unloading at job sites, especially for Covers, pipes, and culverts. The lifting anchor can be used with a crane hook and does not require special lifting equipment.
Specification of Utility Anchor
| Part Number | WD | Anchor Identification | Typical Slab Thickness | W | FD | H | Weight(lbs) |
| MAG-A-44G | .444 | 4/4 | 4'' | 5-1/4'' | 15/16'' | 3-1/18'' | 0.45 |
| MAG-A-54G | .444 | 5/4 | 5'' | 6'' | 15/16'' | 3-3/4'' | 0.53 |
| MAG-A-64G | .444 | 6/4 | 6'' | 7-1/4'' | 15/16'' | 4-3/4'' | 0.59 |
| MAG-B-56G | .671 | 5/6 | 5'' | 6-1/4'' | 1-5/8'' | 3-3/4'' | 1.11 |
| MAG-B-66G | .671 | 6/6 | 6'' | 7-1/2'' | 1-5/8'' | 4-3/4'' | 1.34 |
| MAG-B-86G | .671 | 8/6 | 8'' | 9-3/4'' | 1-5/8'' | 6-3/4'' | 1.81 |
Application of Utility Anchor
The Lift Utility Anchor can be used to remove precast elements from formwork, handle elements in precast yards, load goods, and unload at the job site.
