Prestressed concrete plays a pivotal role in modern construction; it not only enhances structural strength and minimizes cracking but also enables the realization of larger spans. Among the numerous methods for prestressed construction, pre-tensioning and post-tensioning are the two most widely utilized techniques. Although both methods serve to introduce compressive stress into the concrete, they exhibit significant differences in their procedural workflows, scope of application, and construction methodologies.
A thorough understanding of these distinctions enables engineers, contractors, and manufacturers of precast components to select the most appropriate solution tailored to the specific requirements of any given project.
What Is Pre-Tensioning?
Pre-tensioning is a prestressing method in which steel tendons are tensioned before the concrete is poured. The tendons are stretched between fixed abutments, and then concrete is cast around them.
After the concrete gains sufficient strength, the tension is released, transferring compressive force to the concrete through the bond between the steel and concrete.
Typical Applications
Precast beams and girders
Railway sleepers
Hollow-core slabs
Precast panels
Pre-tensioning is commonly used in factory-controlled environments, where high precision and repeatability are required.
What Is Post-Tensioning?

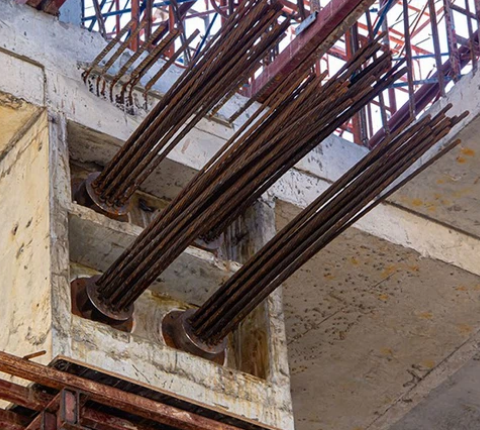

Post-tensioning involves tensioning steel tendons after the concrete has been cast and hardened. The tendons are placed inside ducts or sleeves within the concrete before pouring.
Once the concrete reaches the required strength, the tendons are tensioned using hydraulic jacks and then anchored in place.
Typical Applications
Cast-in-place slabs
Bridges and large-span structures
Parking garages
Building floor systems
Post-tensioning is widely used in on-site construction, especially where flexibility and long spans are needed.
Key Differences Between Pre-Tensioning and Post-Tensioning
| Comparison Factor | Pre-Tensioning | Post-Tensioning |
| Timing of Prestressing | Tendons are tensioned before concrete is poured | Tendons are tensioned after the concrete has hardened |
| Construction Method | Requires fixed casting beds in a factory | Can be performed on-site or in a factory |
| Application Environment | Mainly used in precast concrete production | Widely used in cast-in-place structures |
| Bonding Type | Fully bonded system between steel and concrete | Can be bonded or unbonded |
| Equipment Requirement | Requires long tensioning beds and fixed abutments | Uses hydraulic jacks and anchorage systems |
| Design Flexibility | Limited, suitable for standardized elements | High flexibility for complex structures |
| Production Efficiency | High efficiency for mass production | Lower efficiency but more adaptable |
| Typical Applications | Beams, sleepers, precast slabs, panels | Bridges, slabs, parking structures |
| Cost Consideration | Lower cost in large-scale production | Higher initial cost, but flexible use |
| Best Use Scenario | Precast factories with repetitive production | Large-span or complex on-site structures |
Which Method Should You Choose?
The choice between pre-tensioning and post-tensioning depends on several key factors, including the project type, structural design requirements, production environment, and overall costs and scheduling. For projects requiring standardized, repeatable production—particularly within precast concrete facilities—pre-tensioning is often the preferred option due to its high efficiency, consistency, and suitability for mass production.
Conversely, post-tensioning offers greater flexibility and is better suited for large-scale and complex structures that require on-site adjustments or demand superior performance over long spans. In practice, selecting the appropriate method entails closely integrating prestressing technology with the specific structural requirements and construction conditions of the project.
Conclusion
Both pre-tensioning and post-tensioning are vital prestressing techniques designed to enhance the performance of concrete structures. Although they share a common objective—namely, strengthening structural integrity through the introduction of compressive stress—they differ significantly in their construction processes and fields of application.
By gaining a comprehensive understanding of these distinctions, manufacturers and engineers can select the most appropriate method, thereby achieving superior structural performance, enhanced durability, and greater construction efficiency.
