Description

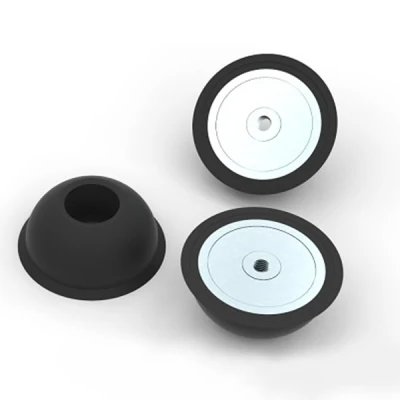

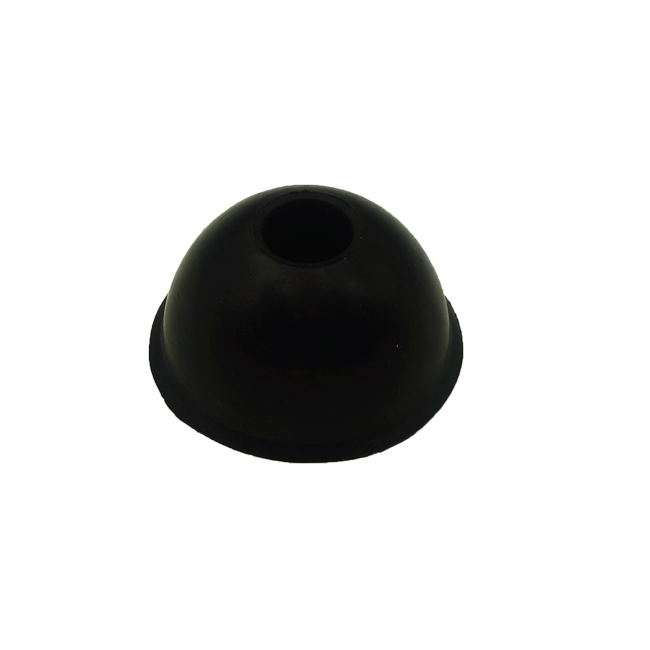

Magnetic Rubber Recess Former
Precast concrete rubber magnetic recess former is a good and fastest way to fix and position lifting pin anchors and build recess on the steel formwork. The magnetic recess former can help the lifting of the pin anchor to change the position quickly and precisely. The tool is made up of a rubber material that is molded to the desired shape and size, and embedded with magnets to hold it securely in place during the concrete casting process. The rubber material is highly flexible and can be easily bent or adjusted to fit the desired shape and size of the recess. The magnets embedded within the rubber material provide a secure hold and prevent the recess formed from shifting or moving during the casting process. This ensures that the recess is accurately formed and positioned within the concrete panel.
| Model | Load Group(Tons) | Load Range(Tons) |
| MAG1202-1.3 | 1.3 | 1.3 |
| MAG1202-2.5 | 2.5 | 2.5 |
| MAG1202-5 | 5 | 4.0-5.0 |
Application of Magnetic Rubber Recess Former

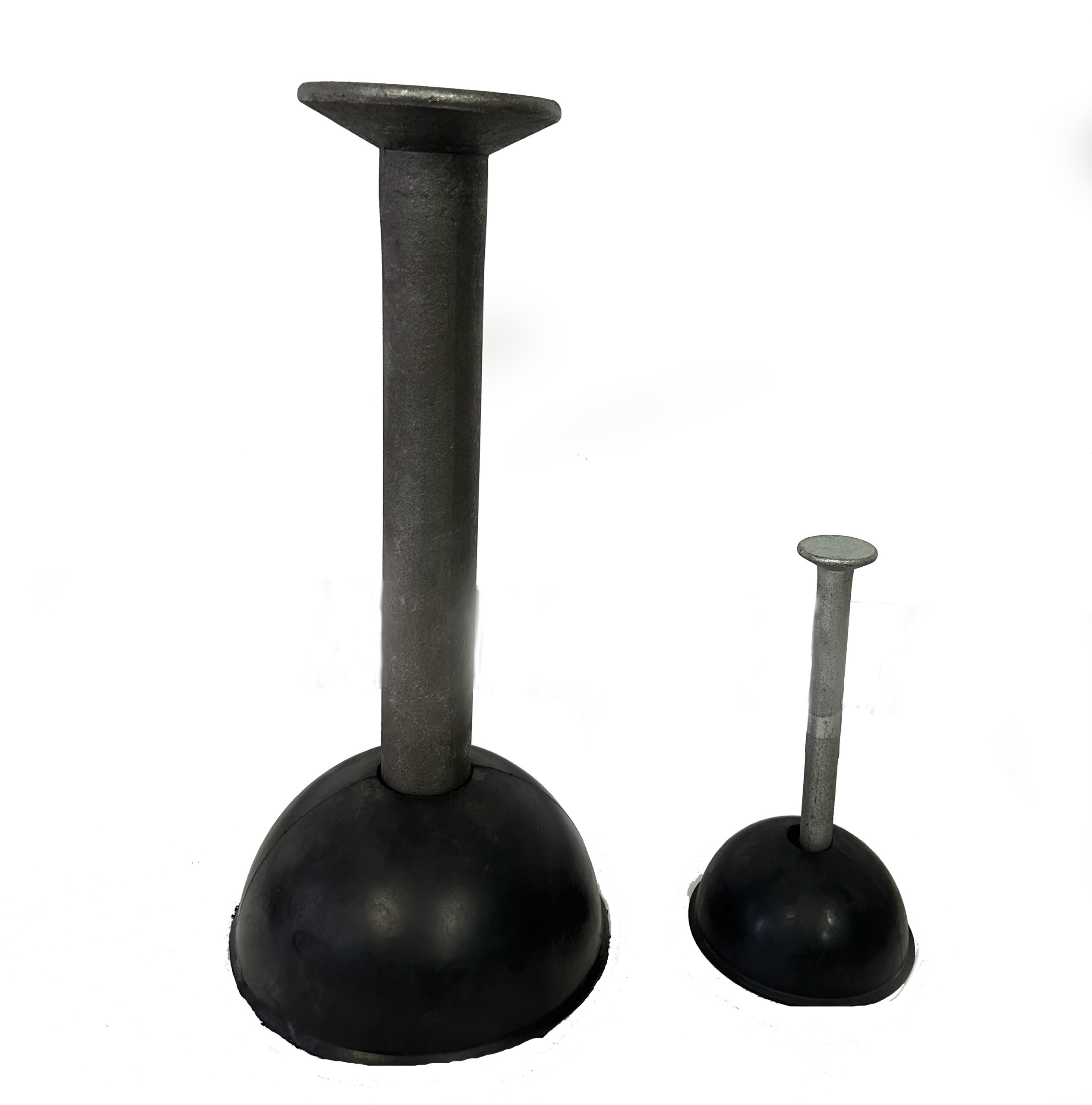

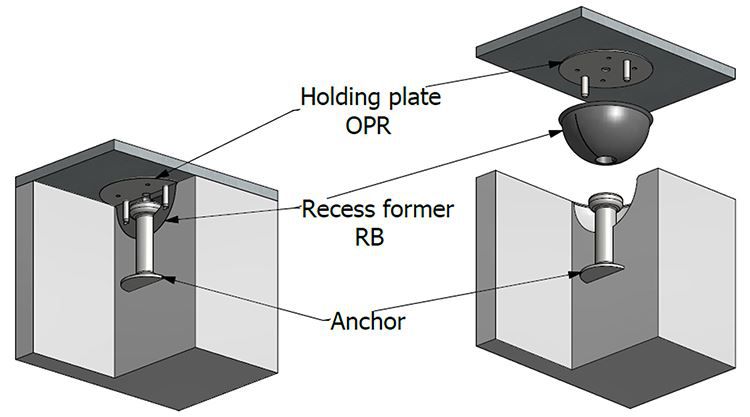

Normally the steel magnetic recess former is used together with lifting anchors. In application, the T Anchor with rubber ring is firstly inserted into the hole of the magnetic former, by means of the magnet itself adsorption function, and then suck the assembled product on the metal mold wall for pouring. When the pouring process is finished and the concrete has hardened sufficiently, the magnetic slot formers can easily be removed automatically or manually with magnetic force. Simply remove the rubber ring under the anchor head and the finished part can be lifted. Thoroughly clean the dome lift armature magnet immediately after removal and apply mold-release oil before each use.
