Lifting anchors are essential components in the lifting process of precast concrete elements. Proper installation of lifting anchors not only ensures the safety of lifting operations but also improves construction efficiency and reduces the risk of accidents. This article provides detailed installation procedures, safety precautions, and common troubleshooting tips to ensure each step meets construction standards and safety requirements.
1. Preparation Before Installation
Adequate preparation before installing lifting anchors is crucial for safe construction:
- Verify Anchor Specifications and Quantity
Confirm the type, quantity, and load capacity of lifting anchors according to the design drawings to ensure they meet structural and lifting requirements. - Check Anchor Quality
Inspect anchors for cracks, rust, or deformation. Ensure that each anchor complies with national or industry standards. - Prepare Installation Tools
Tools include lifting anchors, rubber washers, rebar templates, fixing bolts, levels, and concrete vibrators. Make sure all tools are in good condition and suitable for the construction environment.rebar templates, fixing bolts, levels, and concrete vibrators. Make sure all tools are in good condition and suitable for the construc - Train Construction Personnel
Ensure that personnel are familiar with the installation process, operational guidelines, and emergency procedures for lifting anchors.
2. Lifting Anchor Installation Process
Step 1: Determine Anchor Location
Mark the anchor positions on the precast element according to the construction drawings. This ensures even load distribution and prevents instability during lifting.
Step 2: Install Magnetic Recess or Positioning Template
Fix the recess or rebar template inside the formwork to accurately position the anchor before concrete pouring. Magnetic recesses reduce displacement risk and increase installation efficiency.

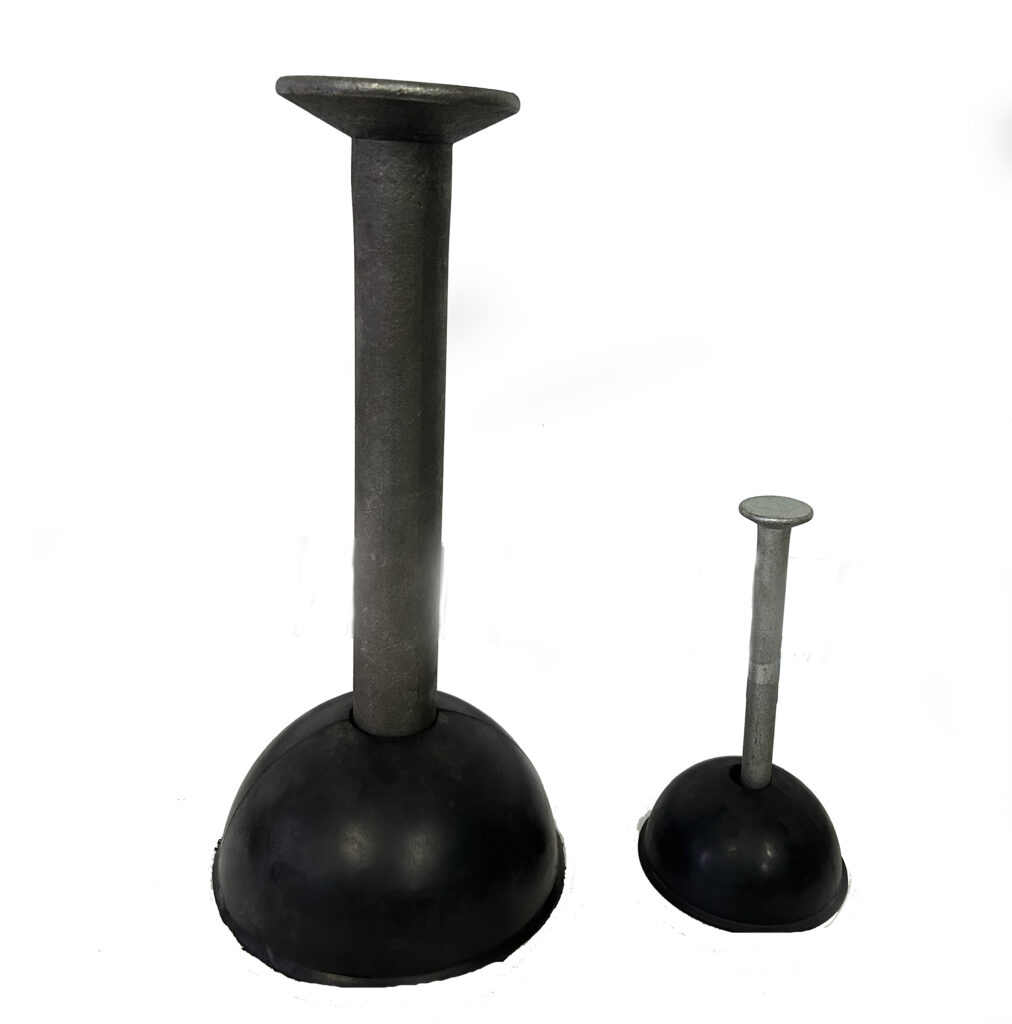

Step 3: Install Rubber Washer
Place a rubber washer on the recess, keeping it flat and unfolded. Rubber washers protect the anchor surface and minimize air bubbles during concrete pouring, ensuring tight bonding with the concrete.
Step 4: Insert the Lifting Anchor
Insert the lifting anchor into the recess or positioning template, ensuring correct orientation and perpendicular alignment to the element surface. Secure the anchor with bolts or fasteners to prevent movement during concrete pouring.
Step 5: Pour Concrete
Once anchors are fixed, pour concrete carefully:
- Pour evenly, avoiding sudden or excessive vibration.
- Control the vibration intensity according to design strength to prevent anchor displacement.
Step 6: Remove Formwork and Inspect
After concrete reaches the designed strength, remove the formwork and inspect the installation:
- Ensure anchors are tightly bonded with concrete and are stable.
- Check for any cracks or damage on the anchor surface.
- Perform load testing on critical elements to ensure lifting safety.
3. Safety Precautions
- Follow Construction Standards
Operate strictly according to national and industry standards to ensure anchor installation meets design requirements. - Check Anchors and Tools
Inspect anchors, templates, and tools before each operation. Replace any damaged components promptly. - Control Concrete Pouring Quality
Avoid uneven pouring or excessive vibration to prevent anchor displacement or concrete cracking. - Use Personal Protective Equipment (PPE)
Equip workers with safety helmets, gloves, and safety shoes to ensure safety during installation and lifting. - Develop Emergency Plans
Prepare contingency plans for potential issues such as anchor loosening or element tilting to respond quickly in case of accidents.
Common Problems and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Anchor shifts after concrete pouring | Loose template or excessive vibration | Reinforce template and control vibration intensity |
| Poor bonding between the concrete and the anchor | The rubber washer is not flat or uneven when pouring | Adjust the rubber washer and pour concrete evenly |
| Cracks on the anchor surface | Poor anchor quality or improper installation | Replace with qualified anchors and follow the correct installation procedure |
Conclusion
Correct installation of lifting anchors is a critical factor for the safety of precast concrete lifting operations. Through proper preparation, strict installation procedures, and safety measures, risks can be minimized and construction efficiency improved. Construction personnel should maintain standardized operations and regular inspections to ensure reliable support for safe lifting.
