Selecting the ideal precast concrete magnets, also known as formwork magnets, is critical for achieving accurate, safe, and efficient precast operations. Factors such as magnetic strength, size, and compatibility with your formwork system must be carefully considered to meet the specific requirements of each project.
From wall panels and beams to hollow-core slabs, the magnets you choose directly affect the structural stability and operational efficiency of your precast workflow. Here, we explore the key considerations—including magnetic force, load requirements, and surface contact—that ensure optimal performance.
Understanding Precast Concrete Magnets
Precast concrete magnets are specially engineered devices designed to securely hold formwork during concrete pouring. They generate a strong magnetic field, typically using neodymium magnets, allowing quick, tool-free attachment to steel surfaces. Using these magnets significantly reduces installation time and enhances dimensional accuracy.
These magnets are essential for various structural components such as wall panels, beams, columns, and hollow-core slabs, with each application requiring different sizes and holding capacities.

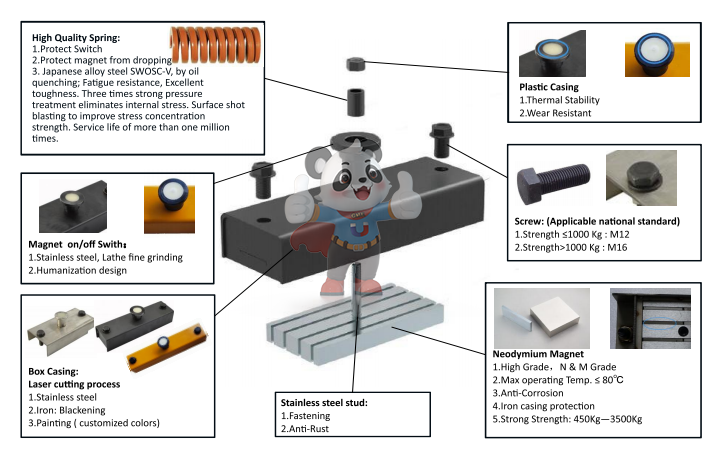

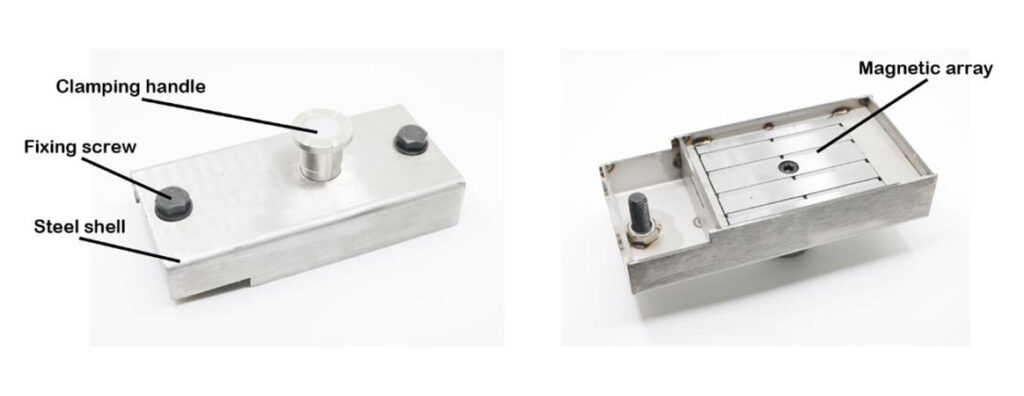

Core Components of Precast Concrete Magnets
1. Steel Housing
Constructed from high-strength, corrosion-resistant steel, the housing protects the magnet from impact, moisture, and chemicals. A robust housing ensures consistent clamping force and extends the magnet’s service life.
2. Neodymium Magnet Core
The heart of the magnet is a neodymium rare-earth core, known for its exceptional holding power. Compared to ferrite magnets, neodymium magnets are compact yet provide high force density, securing heavy formwork even under vibration.
3. Release Lever or Button
A built-in lever or button allows fast, tool-free installation and removal. This feature improves workflow efficiency, reduces fatigue, and minimizes the risk of misaligned formwork.
Key Factors to Consider
1. Magnetic Force
Select magnets based on the load and vibration conditions of your formwork. Typical options include 900kg, 1800kg, and 2100kg magnets:
- 900kg: Light-load panels, window coverings, small wall panels.
- 1800kg: Medium to large wall panels, columns, beams.
- 2100kg or higher: Large slabs, bridge components, or high-vibration environments.
2. Formwork Material Compatibility
Magnets work only on steel. For aluminum formwork, additional steel plates or adapters are required.
3. Operating Environment
High temperatures (above 80°C), extreme weather, or chemical exposure can reduce magnetic performance. Choose magnets with sealed housings and corrosion-resistant coatings for outdoor or heavy-duty use.
Magnet Maintenance Tips
Clean Contact Surfaces: Remove concrete residue, grease, or films before each use.
Use Proper Cleaning Tools: Stainless steel scrapers or wire-polishing discs work best—avoid iron tools.
Handle with Care: Rare-earth cores are brittle; avoid dropping or striking.
Proper Storage: Store on non-ferrous surfaces to prevent sticking and damage.
Choosing the right precast magnet isn’t just about strength—it’s about selecting the most suitable solution for your project. By considering magnetic force, surface compatibility, environmental conditions, and supplier reliability, you can enhance safety, prevent delays, and improve precast production efficiency.
